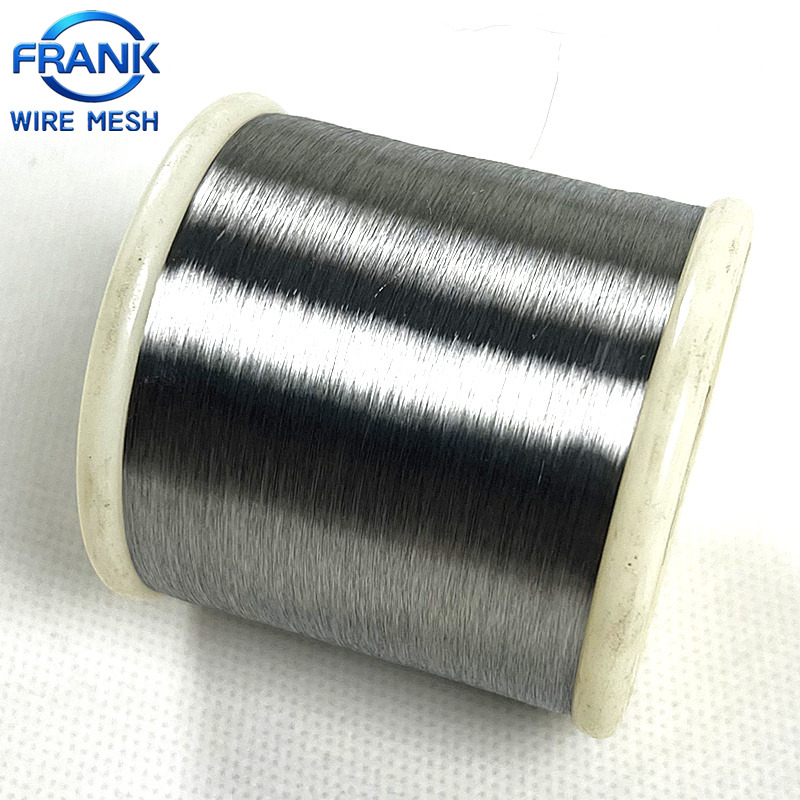

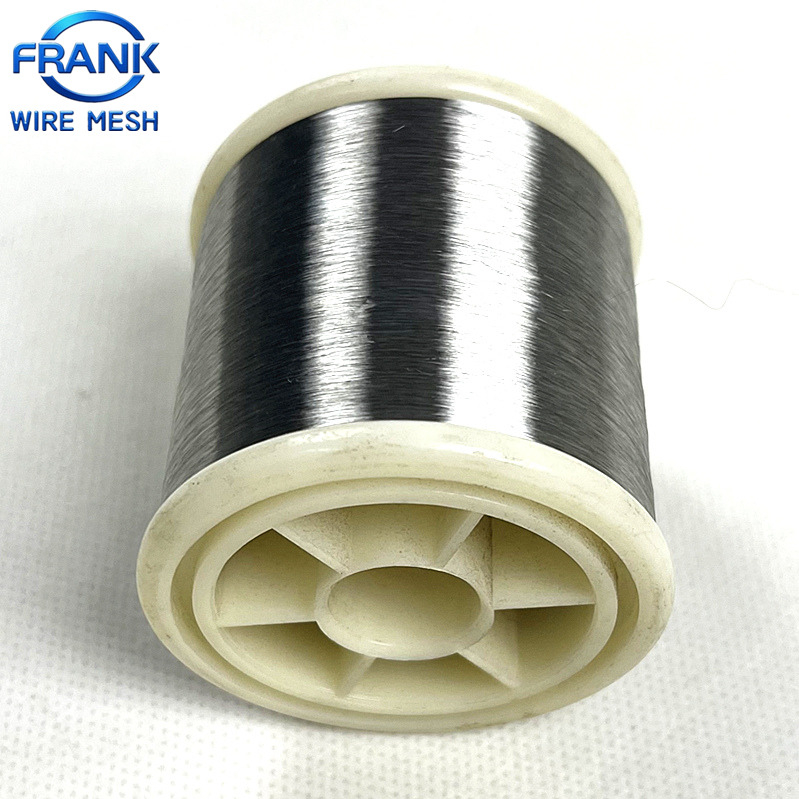

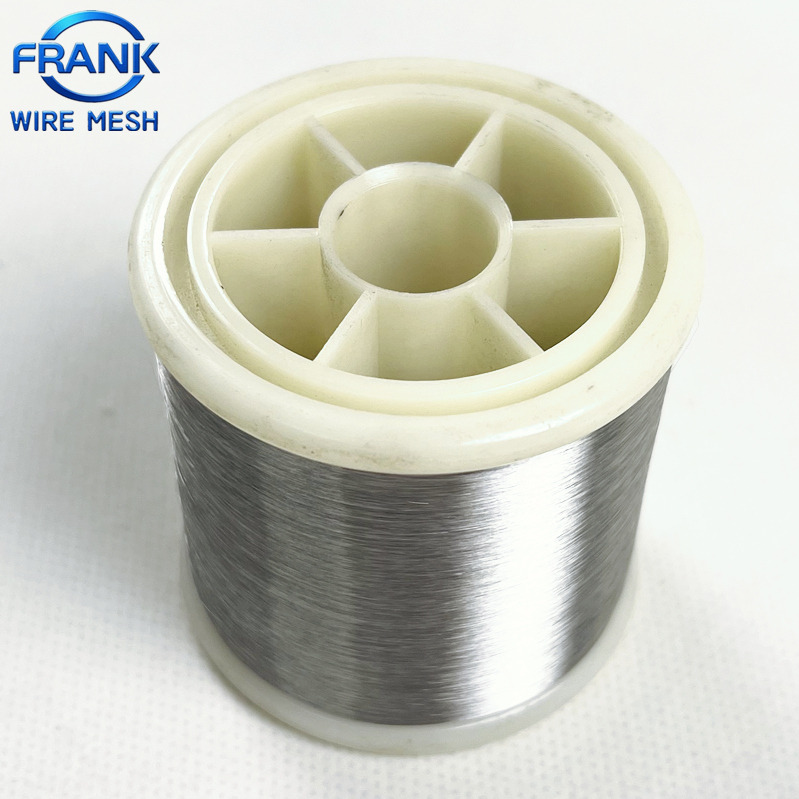

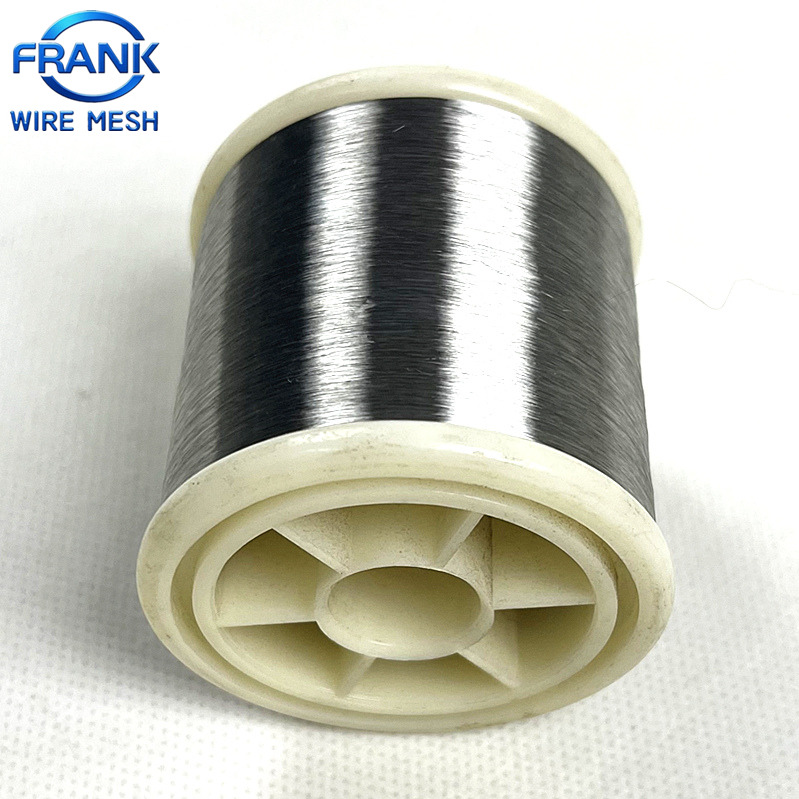

0.022mm 22μm 316L Stainless Steel Wire

Introduction to stainless steel micro wire 0.022mm

Stainless steel microfilament 0.022mm refers to an ultrafine stainless steel metal fiber with a diameter of only 0.022 millimeters (i.e. 22 micrometers, µ m). This size is 3 to 4 times thinner than human hair strands (usually 0.06-0.08mm), almost reaching the limit of visible to the naked eye. It represents the high-precision level of metal wire drawing technology and is a functional material used in special and high-precision fields.

1. Core Features

Due to its extremely fine diameter and the material properties of stainless steel, this microfilament possesses a range of outstanding properties:

The extremely thin diameter of 0.022mm is its most prominent feature, making it suitable for applications that require extremely high space and precision.

High strength and toughness: Despite being very thin, it still maintains good mechanical strength and flexibility due to the use of high-quality stainless steel (such as 304, 316L) and special processing techniques, making it less prone to fracture.

Excellent corrosion resistance: Inheriting the inherent characteristics of stainless steel, it can resist corrosion from atmosphere, moisture, various chemicals and solvents, and has a long service life.

High temperature and low temperature resistance: It can maintain stable performance over a wide temperature range and is not easily melted or aged.

Good conductivity: As a metallic material, it has the ability to conduct electricity and can be used in the field of microelectronics.

High surface quality: After precision drawing and polishing treatment, the surface is smooth, clean, without burrs, and has a low friction coefficient.

2. Common materials

316L stainless steel: containing molybdenum element, it has excellent corrosion resistance (especially pitting resistance) and high temperature strength, making it more suitable for use in harsh corrosive environments such as marine, chemical, and medical.

3. Production process

Producing such fine microfilaments is a technology intensive process that typically involves:

Multiple drawing: Coarse stainless steel wire is drawn through a series of gradually decreasing diamond molds to gradually reduce its diameter.

Intermediate annealing: Multiple heat treatments (annealing) are required during the drawing process to eliminate work hardening, restore the toughness and ductility of the material, and facilitate the next finer drawing step.

Surface treatment: Clean and polish the finished microfilaments to ensure surface smoothness.

Precision winding: Precisely winding extremely fine microfilaments on a spool without tension or low tension to prevent them from breaking and entangling.

4. Main application areas

This ultrafine microfilament is applied in high-tech and precision manufacturing fields due to its unique properties:

Precision sieve and filtration: woven into extremely dense filters, used for high-precision filtration, such as aerospace fuel filtration, sterile filtration in the pharmaceutical industry, and filtration of high-temperature corrosive media in the chemical industry.

Electronics and Communication:

Used as a conductor or shielding layer for high-frequency coaxial cables to reduce signal loss.

Used for manufacturing ultrafine wires and connecting micro electronic components.

Medical equipment:

Guiding wires, braided stents, etc. used for minimally invasive surgical instruments.

As a reinforcing material for toothbrush bristles (high-end product).

Textile and composite materials:

Blended with fibers such as cotton and polyester to manufacture functional fabrics that are radiation resistant, anti-static, conductive, and heat-resistant (such as protective clothing and smart wearables).

Industrial brush and grinding: Manufacturing precision industrial brushes for cleaning and polishing ultra precision surfaces such as LCD displays, silicon wafers, optical lenses, etc., to avoid scratches.

Research and experimentation: used in various scientific studies that require ultrafine, high-strength, and corrosion-resistant wires.

5. Challenges and Handling

Extremely prone to breakage: Handling requires extreme care and usually requires operation in a dust-free environment.

High cost: The production process is complex and the technical threshold is high, resulting in a much higher price than conventional steel wire.

Electrostatic adsorption: Due to its lightweight nature, it is easy to generate static electricity and adsorb dust and debris.

summary

Stainless steel micro wire 0.022mm is a special material representing precision manufacturing technology. Although it is small, it combines high strength, corrosion resistance and a variety of physical characteristics. It is an indispensable "key supporting role" in many high-end industrial, medical and technological products. When your application scenario has extreme requirements for material thickness, strength, and durability, it is the ideal choice.
