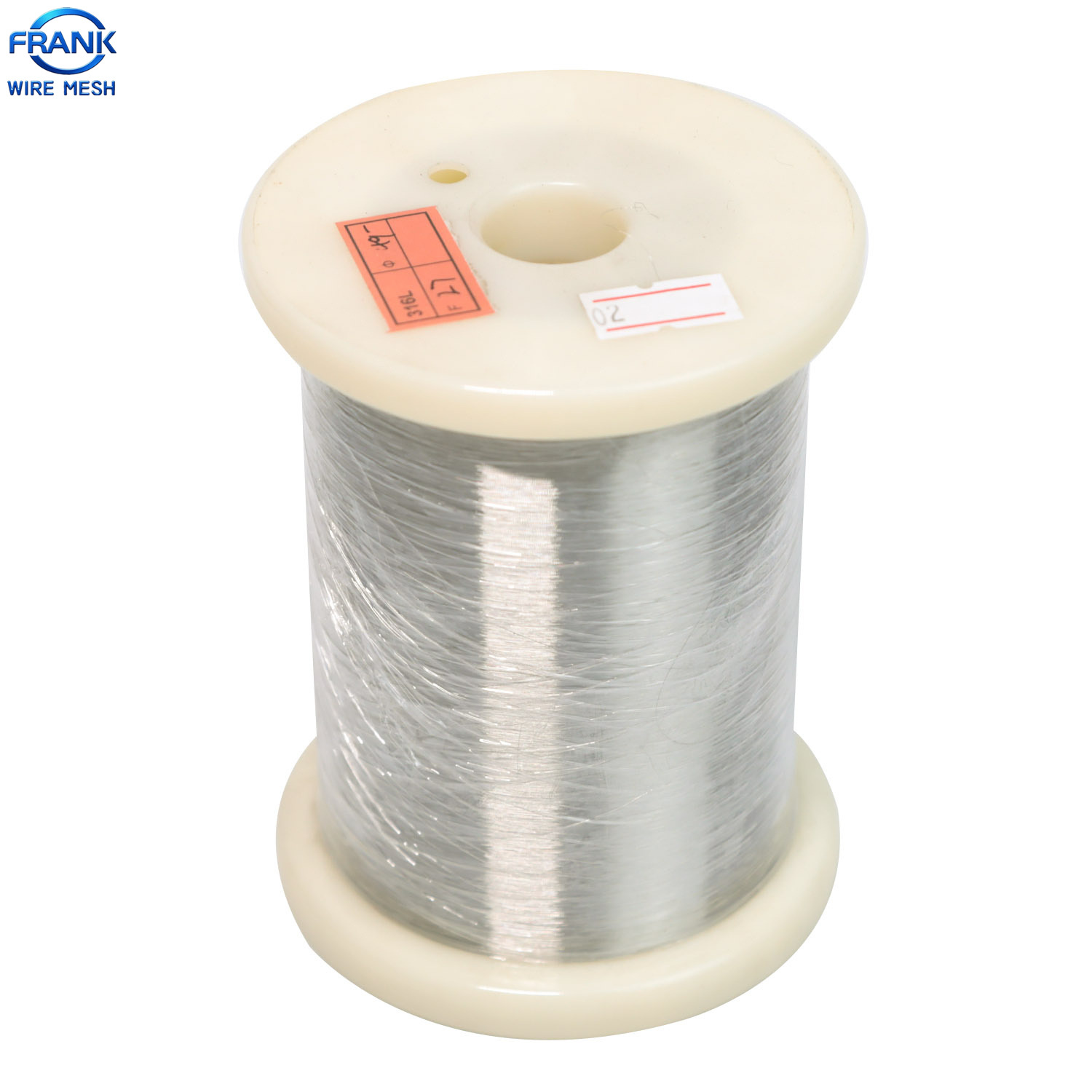

0.050mm 50μm 304L 316L Stainless Steel Wire

Comprehensive Introduction to the Application of Stainless Steel Wire with a Diameter of 0.05mm

A stainless steel wire with a diameter of 0.05 millimeters (i.e. 50 micrometers) is a type of ultrafine metal fiber that represents the level of precision manufacturing. Its thickness is only two-thirds of the average diameter of human hair (about 80 microns), making it the core key material for achieving high-performance and multifunctional "smart textiles" in the textile industry.

Part 1: Core Characteristics of 0.05mm Stainless Steel Wire

This specification of stainless steel wire is not ordinary metal wire, its production is the ultimate embodiment of metallurgy, drawing and surface treatment technology.

Extremely slim: 0.05mm is a critical point in traditional mechanical drawing processes, requiring extremely high production technology.

Excellent mechanical performance: At such a fine scale, it still maintains excellent tensile strength, fatigue resistance, and flexibility, and can withstand repeated bending without easily breaking.

Top material requirements: To ensure performance, 316LVM (medical grade vacuum melted) stainless steel is usually used.

L ": Ultra low carbon content, eliminates intergranular corrosion, and has extremely strong corrosion resistance.

VM ": Vacuum melting ensures extremely high material purity, almost no impurities, and uniform and stable performance.

Ultra smooth surface: It must undergo precision treatment such as electrolytic polishing to remove all micro burrs and obtain a mirror like surface, which is crucial for subsequent spinning processing and final applications.

Part 2: Applications on Spinning Lines - Technical Overview

The term 'spinning' here does not refer to spinning pure metal wire, but rather to the cutting-edge technology of blending it with organic fibers as a functional component to create composite yarns.

Basic process:

Shortization: Precisely cut continuous 0.05mm stainless steel wire into specified short fiber lengths (such as 3mm, 6mm, 12mm).

Blended: Mix these stainless steel short fibers thoroughly with traditional textile fibers (such as cotton, polyester, aramid, acrylic, etc.) in specific proportions.

Spinning: Using specially modified spinning equipment such as rotor spinning and vortex spinning, the mixed fibers are spun into a uniform composite yarn.

Part 3: Why choose 0.05mm stainless steel wire for blending?

This specific size is the 'golden choice' for achieving a balance between spinning applications and performance:

Better flexibility: Compared to thicker metal wires, a diameter of 0.05mm makes it softer after short fibers, closer to the mechanical behavior of organic fibers, greatly improving the feasibility of spinning and the comfort of the final fabric.

More uniform dispersion: The extremely fine diameter allows it to be distributed more evenly in the yarn, forming a dense and efficient conductive network, achieving excellent functional effects with less addition.

Better fabric feel: The final fabric has a relatively softer feel, avoiding rough metallic texture and expanding its application range, especially in the high-end protective clothing field that requires close fitting wear.

Part 4: Revolutionary Functions and Application Fields of Blended Yarn

The functional yarn integrated with 0.05mm stainless steel wire gives the fabric a "superpower" that traditional textiles cannot match:

Core Function Principle Typical Application Fields

Permanent anti-static metal fibers form a conductive network, instantly exporting and dissipating charges. Cleanroom clothing (semiconductor, LCD panel), explosion-proof clothing (petroleum, chemical, gas), industrial workwear.

Electromagnetic shielding (EMI) constitutes the "Faraday cage" effect, effectively shielding/absorbing electromagnetic wave radiation. Military defense (shielding tents, stealth materials), medical (MRI equipment covers, protective clothing), civilian (radiation resistant maternity clothing, electronic product protective bags).

Radiation protection (partially) has a certain attenuation effect on X-rays and gamma rays. Medical radiation protection (used as the base fabric material for lead rubber protective clothing to enhance comfort and durability).

The surface of antibacterial and disinfectant resistant stainless steel is not conducive to bacterial growth, and it is also resistant to high temperatures and corrosion. Medical textiles (surgical gowns, ward fabrics, can withstand multiple high-temperature disinfection and washing without aging).

High thermal conductivity in thermal management can accelerate heat dissipation; Metal surfaces reflect human thermal radiation. High performance sportswear (enhancing thermal comfort), special insulation materials.

Part 5: Common Blended Proportions and Their Significance

Low proportion (0.5% -3%): mainly used for anti-static function, commonly used in industrial environments with extremely high cleanliness requirements.

Medium proportion (5% -15%): On the basis of anti-static, it achieves good electromagnetic shielding effect, meeting the needs of the electronic industry and general shielding.

High proportion (20% -30%): Achieve high-strength shielding effectiveness (>60dB), used in military, aerospace, and high-end professional protection fields.

summary

0.05mm stainless steel wire is a bridge connecting traditional textile and high-tech industries. It weaves the excellent properties of metal, such as conductivity, shielding, and strength, into soft textiles through blending technology, thus giving birth to a new generation of intelligent textiles that combine protection, comfort, and durability. This is not only a technology, but also a revolution in the field of textile materials, providing key basic material solutions for industries such as safety protection, healthcare, and defense technology.
