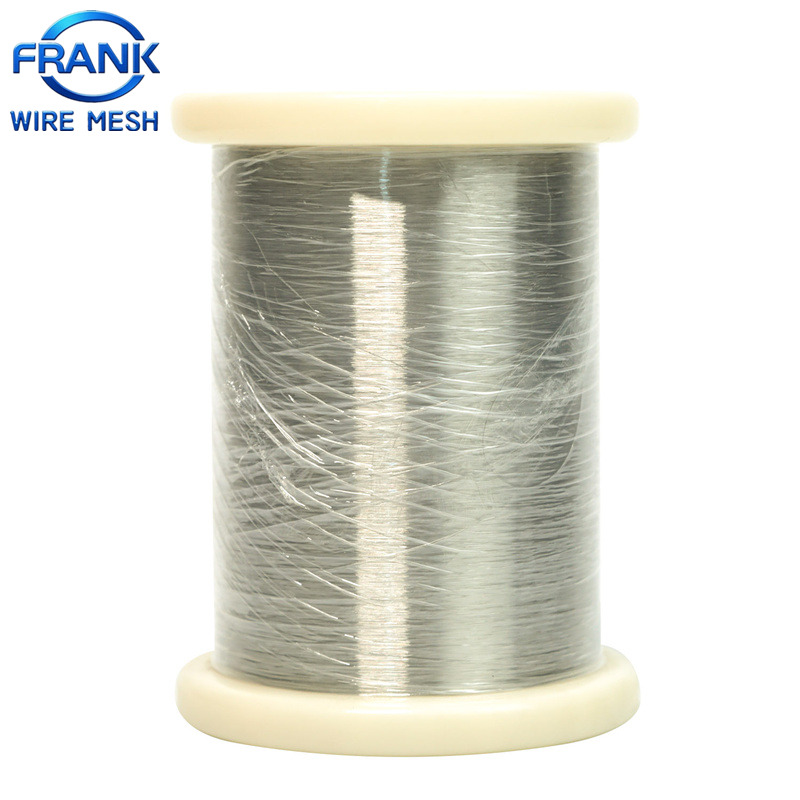

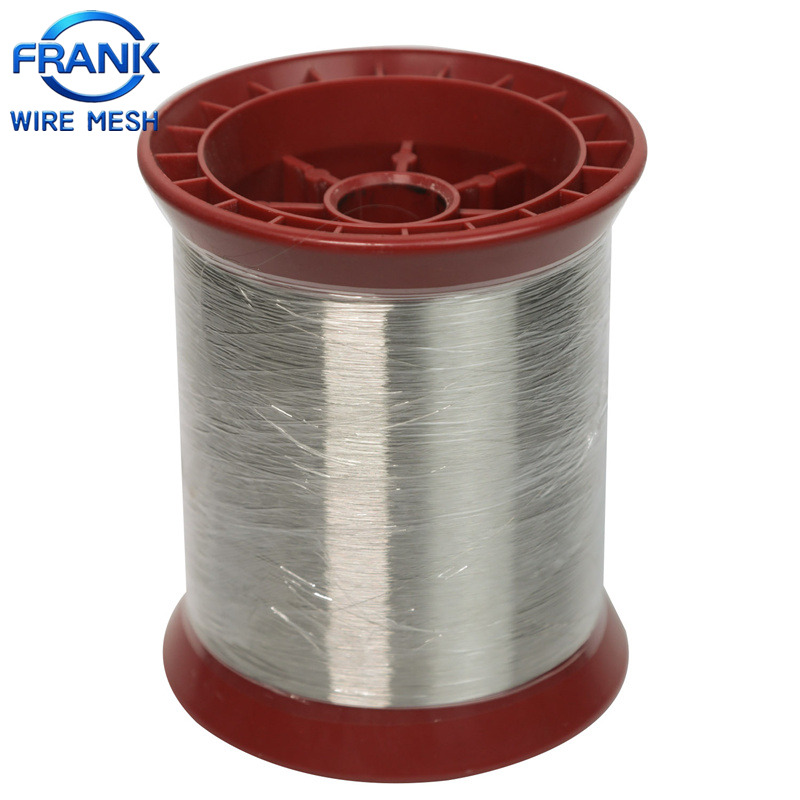

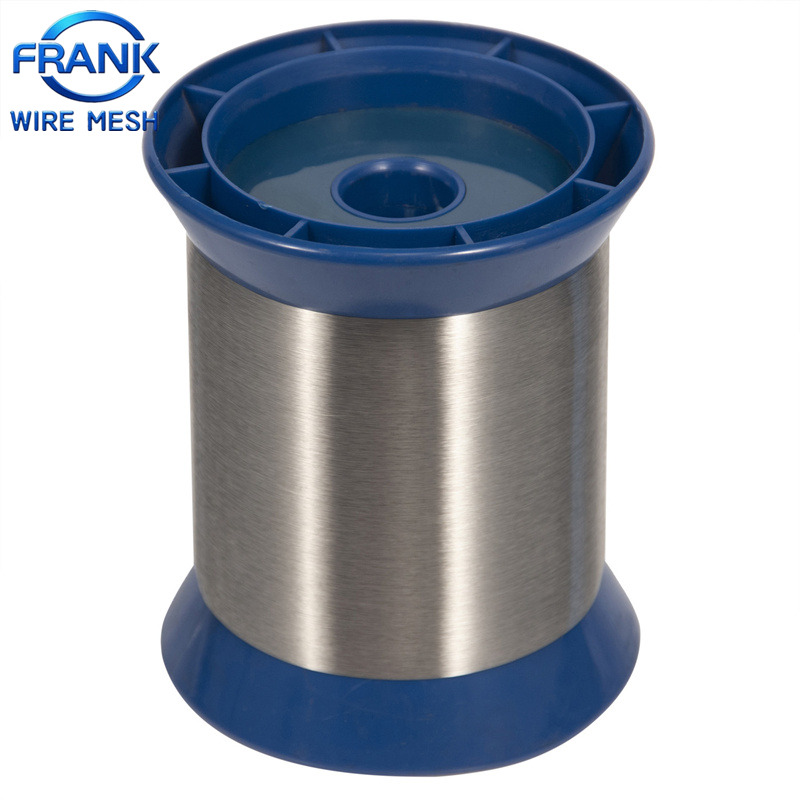

0.025mm 25μm 316L Stainless Steel Wire

Ultimate Introduction to Stainless Steel Microfilaments (Diameter 0.025mm)

The diameter of this strand is only about 31% of human hair strands (approximately 80 µ m). At this scale, producing it is already a cutting-edge systems engineering that integrates materials science, precision machinery, metrology, and physical chemistry. Its value and application are directly related to national level cutting-edge technology and medical projects.

1、Core feature: Challenge to physical limits

Nano level accuracy and consistency: The diameter tolerance of 0.025mm is strictly controlled within a range of ± 0.2 micrometers. This requires that the entire process from raw materials to finished products must be completed in the highest level of cleanroom (such as Class 10), with extreme control over temperature, vibration, and humidity. The diameter fluctuation of a whole roll of tens of thousands of meters of wire must be almost zero.

Perfect mechanical performance: In addition to extremely high tensile strength, its bending life and torque transmission efficiency have become the core indicators. It must be able to withstand hundreds of millions of repeated bending and precise twisting at the microscale.

Atomic level surface integrity: The surface smoothness requirement is Ra<0.02 microns. Zero defects must be achieved, as any atomic scale surface defects can become the origin of fatigue cracks in dynamic applications. Advanced electrolytic polishing is an essential process that gives it life.

Ultimate material purity: Mandatory use of special superalloys with performance far exceeding 316LVM, such as:

MP35N ® /  CoCrNi alloy: has become the preferred choice due to its unparalleled strength, toughness, and fatigue resistance.

Platinum iridium/platinum nickel alloy: It combines excellent biocompatibility, X-ray imaging, and outstanding mechanical properties, making it the ultimate choice in the medical field.

2、Manufacturing process: the pearl on the crown of industry

The manufacturing process is a concentrated reflection of human precision manufacturing capabilities and can be called "nano art":

Ultra pure raw materials: Pre alloyed wires prepared by electron beam cold bed melting (EBCHR) or similar cutting-edge processes are used to ensure that the material is free of segregation and inclusions, and the composition uniformity reaches atomic level.

Nano precision mold: Use single crystal diamond molds with nanometer level aperture accuracy. The manufacturing, testing, and maintenance of molds are themselves top-notch disciplines.

Drawing in ultra precision environment: The entire process is carried out in a Class 10 or higher level ultra clean room. The drawing speed is extremely slow, and the dynamic tension and speed control at the nanoscale are carried out by a computer. The online laser caliper is used for 100% real-time monitoring and feedback.

Extreme performance heat treatment: precision annealing is performed in a high vacuum furnace to precisely control the recrystallization process and grain size, in order to optimize the microstructure of the material and achieve the desired mechanical properties.

Atomic level surface treatment: using mirror level electrolytic polishing, sometimes combined with other advanced surface treatment techniques, to ensure a flawless surface.

Non destructive testing and packaging: Each roll of wire must undergo full length non-destructive testing (such as eddy current testing) to ensure that there are no defects inside and on the surface. Finally, special containers filled with ultra-high purity inert gas were used for packaging.

3、Top application areas: Defining future technology

This specification of microfilament has extremely high cost and is priced in centimeters, only used in the most valuable and irreplaceable cutting-edge fields:

Neurointerventional and high-end medical (core applications):

Neurovascular guide wires and instruments: This is their most important and demanding application. Minimally invasive surgery used for the treatment of cerebral aneurysms, acute ischemic stroke (thrombectomy), and other diseases. Doctors need to manipulate guide wires to pass through hair like, delicate, tortuous, and fragile cerebral blood vessels. The ultimate choice for completing these "life channel" surgeries is the 0.03mm ultra slim, ultra-high flexibility, anti bending, and torque transmission ability. A finer diameter means better remote access and lower risk of vascular injury.

Micro robot drive wire: used in some cutting-edge intravascular surgical robots as the transmission core for their precise movements, requiring extremely high precision in pushing and pulling force and torque transmission.

Ultra high precision implant component: a woven skeleton or marker point that serves as the most precise intravascular implant (such as blood flow guidance devices, intracranial stents).

Ultra high precision sensors and actuators:

Used as probes, cantilevers, or feedback adjustment components in top-level equipment such as lithography machines, space telescopes, and atomic force microscopes (AFM).

Conductive wire used for surgical robot human feedback system.

Frontier Science and Special Fields:

The core material of micromechanics (MEMS/NEMS) research.

Precision signal wires in high-energy physics experiments, such as particle collider detectors.

The hairspring of high-end mechanical watches (requiring the use of special nickel or cobalt based alloys) pursue ultimate synchronicity and diamagnetism.

Summary: Beyond the Value of Materials

The value of stainless steel microfilaments with a diameter of 0.025mm far exceeds that of "steel wire" itself. It is the culmination of cutting-edge technologies from multiple disciplines such as materials science, precision engineering, and medicine.

It is no longer a 'raw material', but a highly engineered 'device' that completes specific functions. Choosing this size means that your project is at the forefront of global technology, with ultimate and unbeatable performance requirements. Its value lies in the top-level functions it can achieve, such as saving lives or exploring the unknown, making it a true "industrial pearl".
